830-10-015-10-001000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

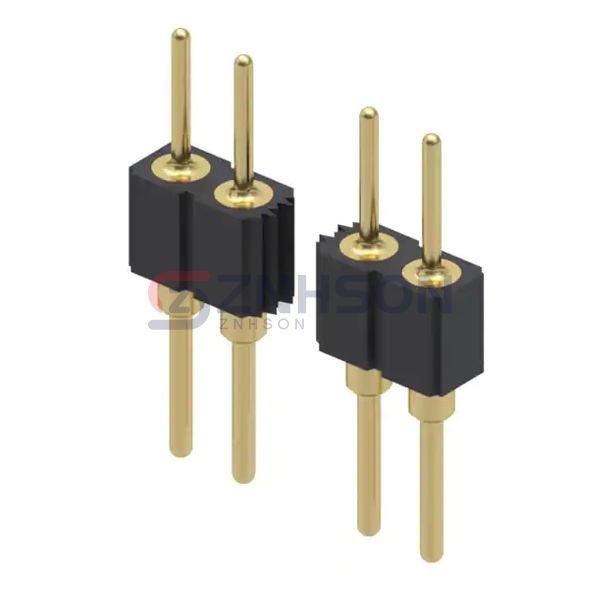

CONN HEADER VERT 15POS 2MM
$14.27
Available to order
Reference Price (USD)
1+
$14.26574
500+
$14.1230826
1000+
$13.9804252
1500+
$13.8377678
2000+
$13.6951104
2500+
$13.552453
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 830-10-015-10-001000 male pin header by Mill-Max Manufacturing Corp. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Mill-Max Manufacturing Corp. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.154" (3.91mm)
- Contact Length - Post: 0.164" (4.17mm)
- Overall Contact Length: 0.475" (12.07mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
