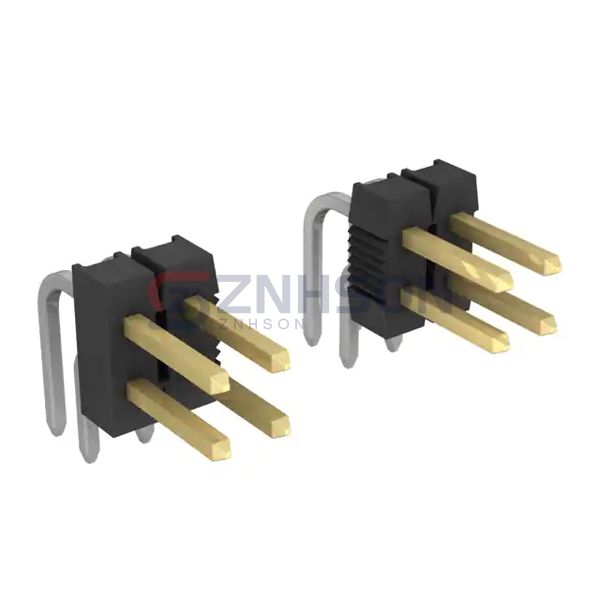

9-146309-0-06

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 12POS 2.54MM

Datasheet:

9-146309-0-06 Datasheet

$2.99

Available to order

Reference Price (USD)

$2.76000

10+

$2.65200

25+

$2.43120

50+

$2.32080

100+

$2.21030

250+

$1.93404

500+

$1.87878

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the 9-146309-0-06 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 12
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.110" (2.79mm)
Overall Contact Length: -
Insulation Height: 0.238" (6.05mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Thermoplastic, Glass Filled
Features: -
Operating Temperature: -65°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
