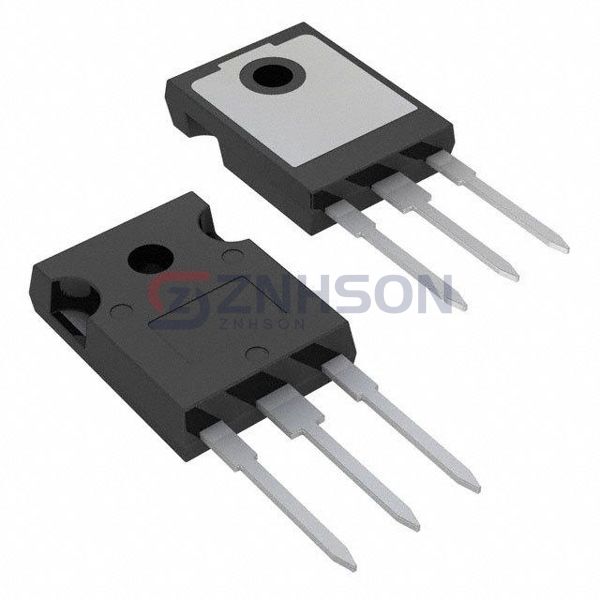

AIGW40N65F5XKSA1
Infineon Technologies
Infineon Technologies
IGBT 650V TO247-3
$5.04
Available to order
Reference Price (USD)
1+
$6.82000
10+
$6.16100
240+
$5.12721
720+
$4.42947
1,200+
$3.80389
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AIGW40N65F5XKSA1 by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the AIGW40N65F5XKSA1 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 74 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 40A
- Power - Max: 250 W
- Switching Energy: 350µJ (on), 100µJ (off)
- Input Type: Standard
- Gate Charge: 95 nC
- Td (on/off) @ 25°C: 19ns/165ns
- Test Condition: 400V, 20A, 15Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3-41
