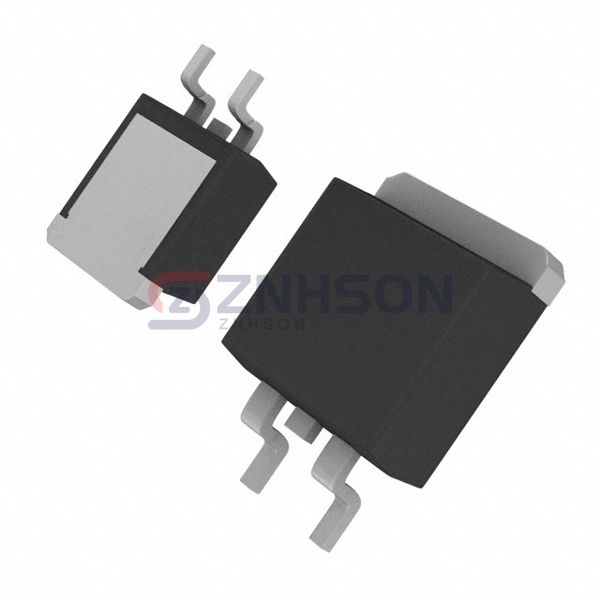

APT40GR120S
Microchip Technology
Microchip Technology
IGBT 1200V 88A 500W D3PAK
$8.48
Available to order
Reference Price (USD)
63+
$8.80413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the APT40GR120S Single IGBT transistor from Microchip Technology. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the APT40GR120S ensures precision and reliability. Microchip Technology's cutting-edge technology guarantees a component that meets the highest industry standards. Choose APT40GR120S for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 88 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 40A
- Power - Max: 500 W
- Switching Energy: 1.38mJ (on), 906µJ (off)
- Input Type: Standard
- Gate Charge: 210 nC
- Td (on/off) @ 25°C: 22ns/163ns
- Test Condition: 600V, 40A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D3Pak
