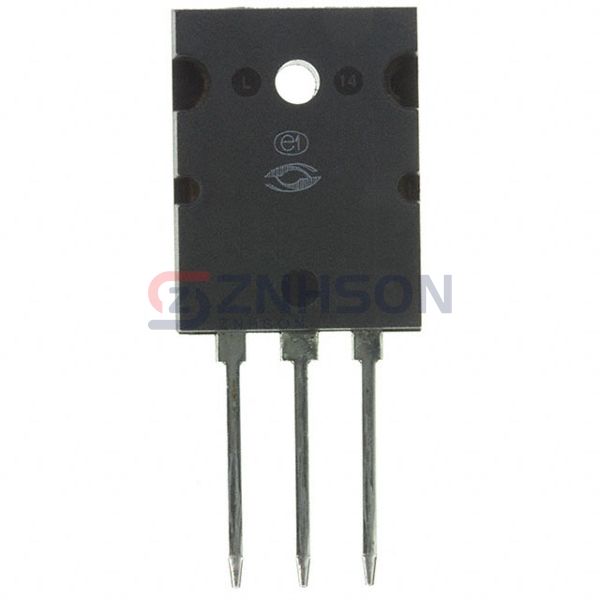

APT75GN60LDQ3G
Microchip Technology
Microchip Technology
IGBT 600V 155A 536W TO264
$10.42
Available to order
Reference Price (USD)
1+
$12.56000
10+
$11.30200
25+
$10.29720
100+
$9.29250
250+
$8.53908
500+
$7.78564
1,000+
$6.78104
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT75GN60LDQ3G Single IGBT transistor by Microchip Technology is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the APT75GN60LDQ3G provides consistent performance in varied conditions. Rely on Microchip Technology's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 155 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 75A
- Power - Max: 536 W
- Switching Energy: 2500µJ (on), 2140µJ (off)
- Input Type: Standard
- Gate Charge: 485 nC
- Td (on/off) @ 25°C: 47ns/385ns
- Test Condition: 400V, 75A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264 [L]
