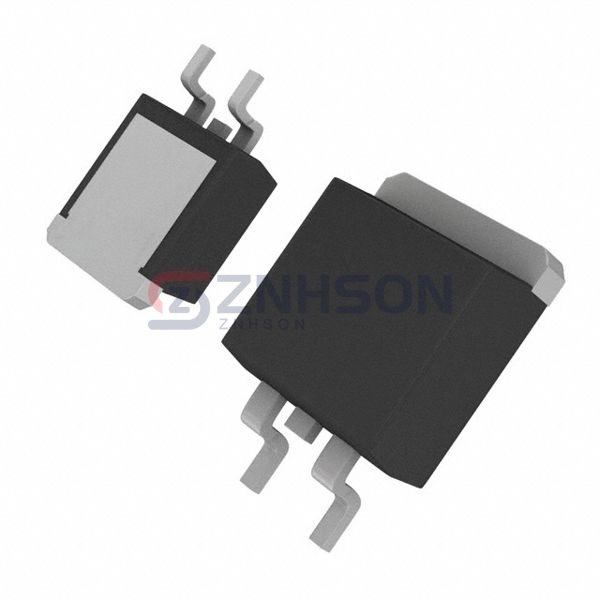

APT7M120S
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 8A D3PAK
$7.03
Available to order
Reference Price (USD)
79+
$6.69114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the APT7M120S by Microchip Technology, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the APT7M120S is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.1Ohm @ 3A, 10V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2565 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 335W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D3Pak
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
