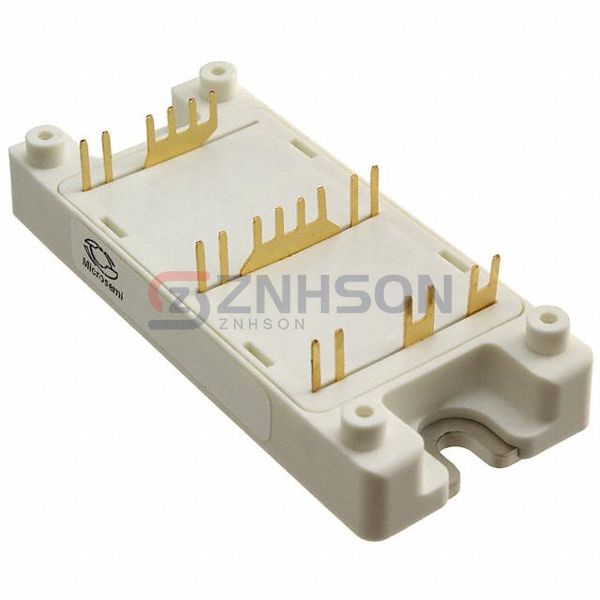

APTGT100DU60TG
Microchip Technology
Microchip Technology
IGBT MODULE 600V 150A 340W SP4
$94.44
Available to order
Reference Price (USD)
100+
$47.82750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Microchip Technology's APTGT100DU60TG, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The APTGT100DU60TG performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Microchip Technology's APTGT100DU60TG, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 150 A
- Power - Max: 340 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 100A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.1 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
