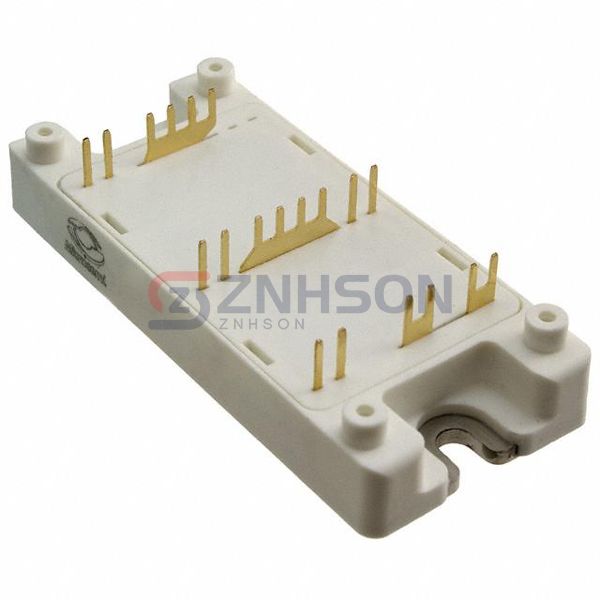

APTGT300A60TG
Microchip Technology
Microchip Technology
IGBT MODULE 600V 430A 935W SP4
$165.37
Available to order
Reference Price (USD)
1+
$114.83000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT300A60TG stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the APTGT300A60TG enables higher power density in MRI gradient amplifiers. Choose Microchip Technology for IGBT modules that push performance boundaries.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 430 A
- Power - Max: 935 W
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 300A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 18.4 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
