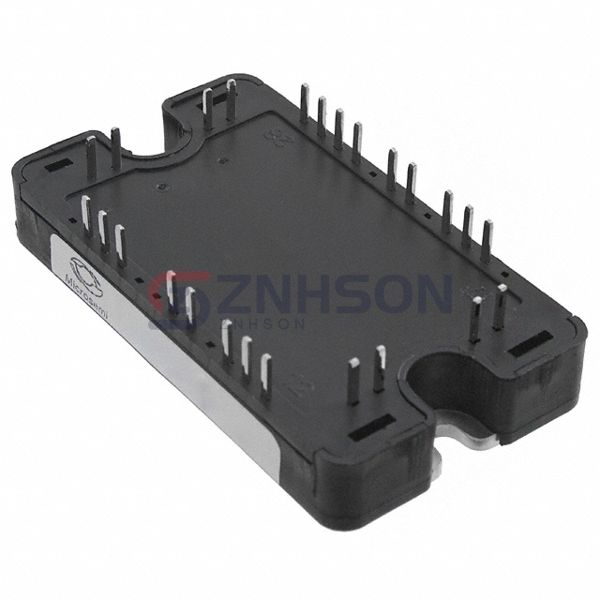

APTGT50DDA120T3G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 75A 270W SP3
$77.52
Available to order
Reference Price (USD)
100+
$44.79840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's APTGT50DDA120T3G stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the APTGT50DDA120T3G enables higher power density in MRI gradient amplifiers. Choose Microchip Technology for IGBT modules that push performance boundaries.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Dual Boost Chopper
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 270 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 50A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 3.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SP3
- Supplier Device Package: SP3
