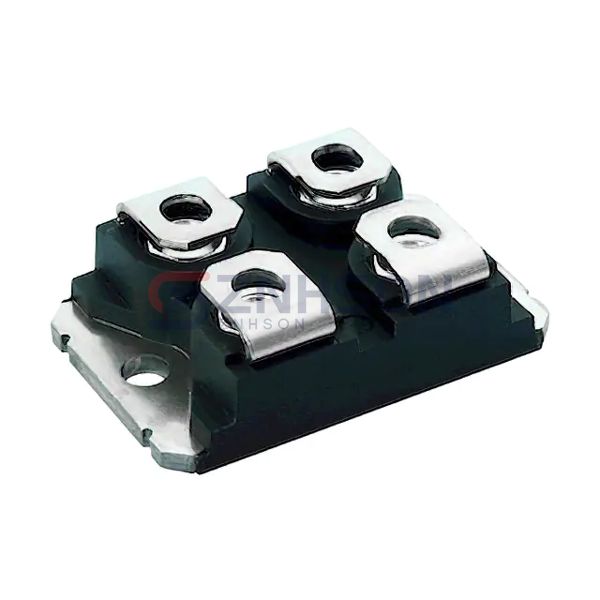

VS-GT90SA120U
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SOT-227 - SINGLE SWITCH IGBT
$36.83
Available to order
Reference Price (USD)
1+
$36.83000
500+
$36.4617
1000+
$36.0934
1500+
$35.7251
2000+
$35.3568
2500+
$34.9885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VS-GT90SA120U from Vishay General Semiconductor - Diodes Division exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the VS-GT90SA120U in megawatt-level wind turbine converters. With Vishay General Semiconductor - Diodes Division's proven track record, the VS-GT90SA120U represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 169 A
- Power - Max: 781 W
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 75A
- Current - Collector Cutoff (Max): 100 µA
- Input Capacitance (Cies) @ Vce: -
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: SOT-227
