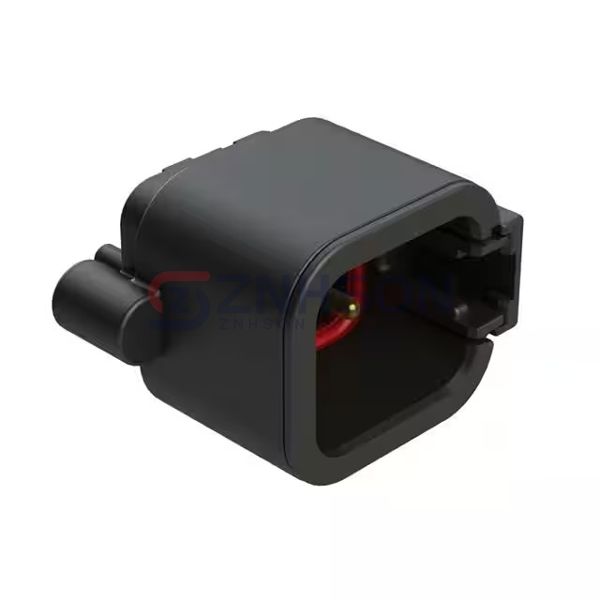

ATP04-6P-BM11
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
6 POSITION, STRAIGHT PCB RECEPTA
$15.43
Available to order
Reference Price (USD)
1+
$15.43000
500+
$15.2757
1000+
$15.1214
1500+
$14.9671
2000+
$14.8128
2500+
$14.6585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ATP04-6P-BM11 by Amphenol Sine Systems Corp is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the ATP04-6P-BM11 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol Sine Systems Corp ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.264" (6.71mm)
- Number of Positions: 6
- Number of Rows: 3
- Row Spacing - Mating: 0.400" (10.16mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 1.126" (28.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Sealed
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 25A
- Voltage Rating: -
