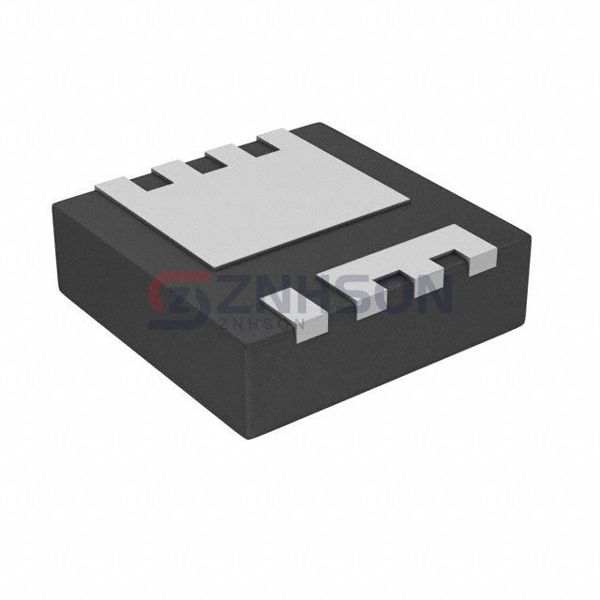

BSZ0506NSATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 30V 15A/40A TSDSON
$1.22
Available to order
Reference Price (USD)
5,000+
$0.36234
10,000+
$0.34892
25,000+
$0.34160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the BSZ0506NSATMA1 from Infineon Technologies, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the BSZ0506NSATMA1 ensures reliable performance in demanding environments. Upgrade your circuit designs with Infineon Technologies's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 40A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.4mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 950 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta), 27W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TSDSON-8-FL
- Package / Case: 8-PowerTDFN
