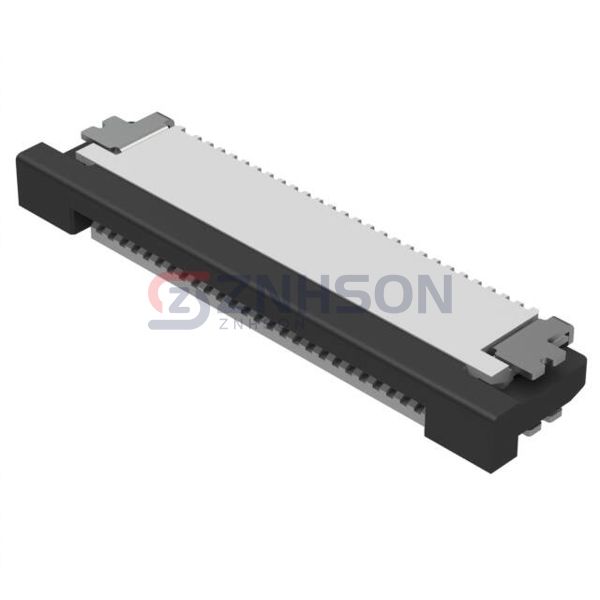

CF20261D0R0-NH
Cvilux USA
Cvilux USA
CF20 SERIES 0.50MM(.020") ZIF SI
$0.43
Available to order
Reference Price (USD)
1+
$0.43000
500+
$0.4257
1000+
$0.4214
1500+
$0.4171
2000+
$0.4128
2500+
$0.4085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the CF20261D0R0-NH FFC/FPC Connectors from Cvilux USA, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The CF20261D0R0-NH series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Cvilux USA's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for CF20261D0R0-NH when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 26
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Copper Alloy
- Contact Finish: Tin
- Housing Material: Thermoplastic, Halogen Free
- Actuator Material: Thermoplastic, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
