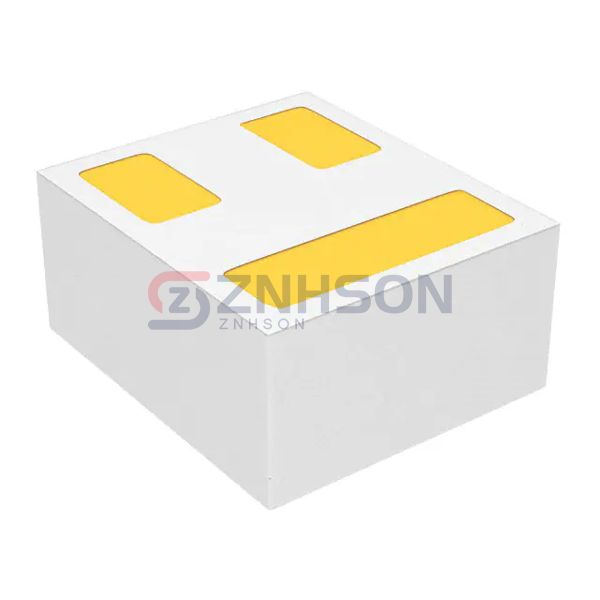

CSD15380F3
Texas Instruments
Texas Instruments
MOSFET N-CH 20V 500MA 3PICOSTAR
$0.47
Available to order
Reference Price (USD)
3,000+
$0.08200
6,000+
$0.07400
15,000+
$0.06600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the CSD15380F3 from Texas Instruments, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the CSD15380F3 ensures reliable performance in demanding environments. Upgrade your circuit designs with Texas Instruments's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.8V, 8V
- Rds On (Max) @ Id, Vgs: 1190mOhm @ 100mA, 8V
- Vgs(th) (Max) @ Id: 1.35V @ 2.5µA
- Gate Charge (Qg) (Max) @ Vgs: 0.281 nC @ 10 V
- Vgs (Max): 10V
- Input Capacitance (Ciss) (Max) @ Vds: 10.5 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
