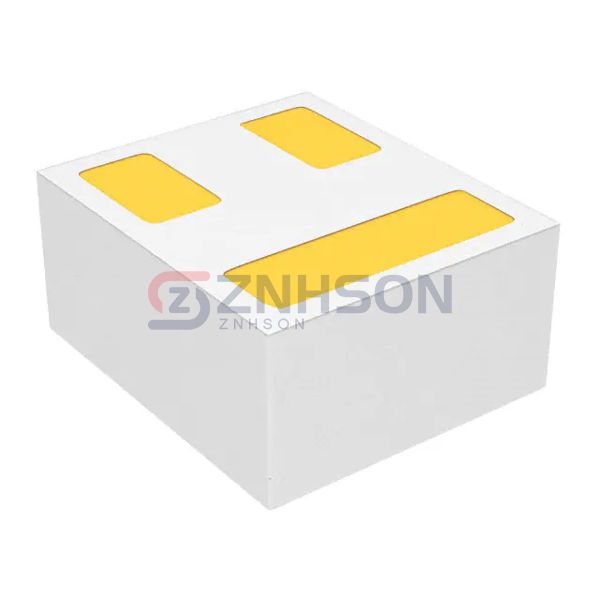

CSD15380F3T
Texas Instruments
Texas Instruments
MOSFET N-CH 20V 500MA 3PICOSTAR
$0.99
Available to order
Reference Price (USD)
1+
$0.99000
500+
$0.9801
1000+
$0.9702
1500+
$0.9603
2000+
$0.9504
2500+
$0.9405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD15380F3T by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD15380F3T is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 8V
- Rds On (Max) @ Id, Vgs: 1190mOhm @ 100mA, 8V
- Vgs(th) (Max) @ Id: 1.35V @ 2.5µA
- Gate Charge (Qg) (Max) @ Vgs: 0.281 nC @ 10 V
- Vgs (Max): 10V
- Input Capacitance (Ciss) (Max) @ Vds: 10.5 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
