CSD16556Q5B
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 100A 8VSON
$2.56
Available to order
Reference Price (USD)
2,500+
$1.05000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD16556Q5B by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD16556Q5B stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.07mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 1.7V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 47 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6180 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 191W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Fairchild Semiconductor
FQI4N80TU
Texas Instruments
CSD15380F3T
Taiwan Semiconductor Corporation
TSM480P06CP ROG
STMicroelectronics
STP33N60M2
Infineon Technologies
BSC022N04LSATMA1
Infineon Technologies
BSS127H6327XTSA2
STMicroelectronics
STF150N10F7
Infineon Technologies

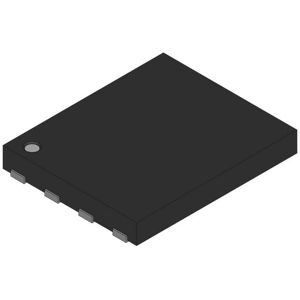

BSC119N03MSCG
onsemi

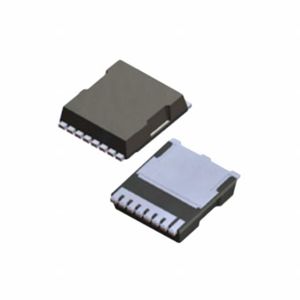

FDBL9403-F085
