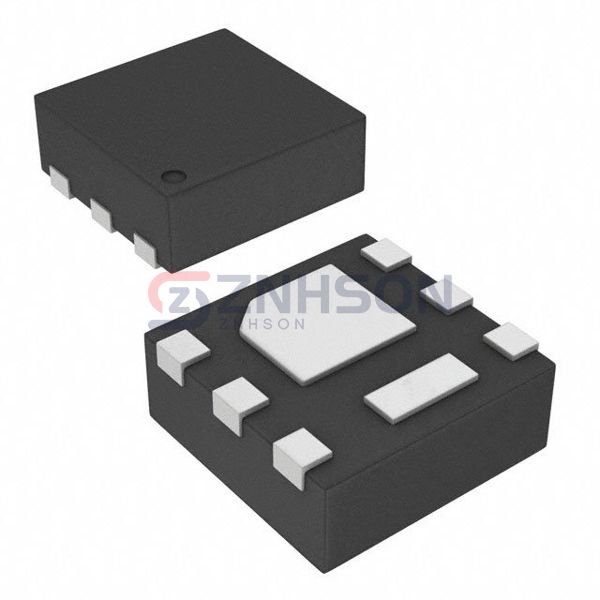

CSD17313Q2T
Texas Instruments
Texas Instruments
MOSFET N-CH 30V 5A 6WSON
$1.26
Available to order
Reference Price (USD)
1+
$1.26000
500+
$1.2474
1000+
$1.2348
1500+
$1.2222
2000+
$1.2096
2500+
$1.197
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD17313Q2T single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD17313Q2T is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 30mOhm @ 4A, 8V
- Vgs(th) (Max) @ Id: 1.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.7 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.4W (Ta), 17W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WSON (2x2)
- Package / Case: 6-WDFN Exposed Pad
