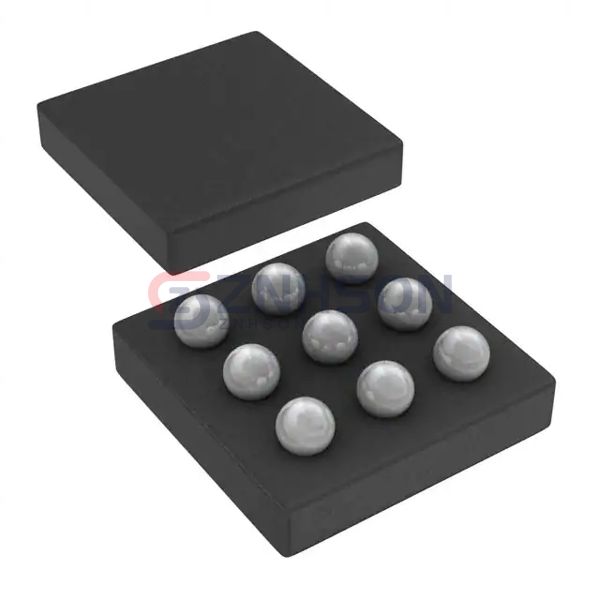

CSD25202W15
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 4A 9DSBGA
$0.27
Available to order
Reference Price (USD)
1+
$0.26880
500+
$0.266112
1000+
$0.263424
1500+
$0.260736
2000+
$0.258048
2500+
$0.25536
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25202W15 single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD25202W15 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 26mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.5 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1010 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
