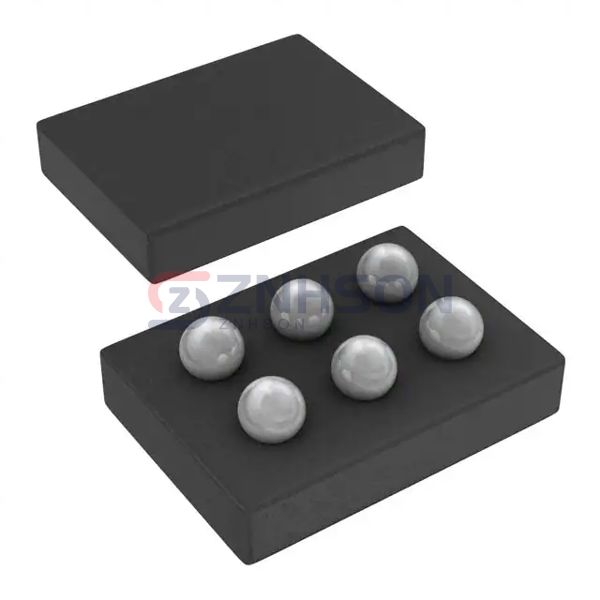

CSD25211W1015
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3.2A 6DSBGA
$0.69
Available to order
Reference Price (USD)
3,000+
$0.18600
6,000+
$0.17400
15,000+
$0.16800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD25211W1015 by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD25211W1015 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 33mOhm @ 1.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.1 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 570 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-DSBGA (1x1.5)
- Package / Case: 6-UFBGA, DSBGA
