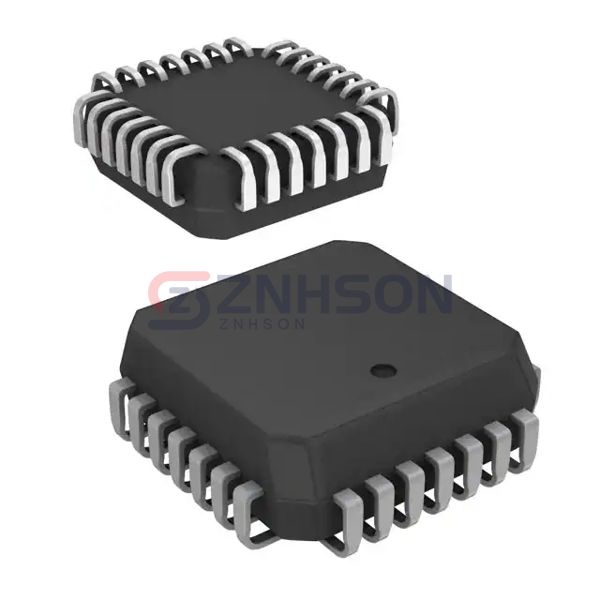

DG407DN-E3
Vishay Siliconix
Vishay Siliconix
IC MUX CMOS ANLG DUAL 8CH 28PLCC
$9.81
Available to order
Reference Price (USD)
1+
$8.04000
10+
$7.26700
25+
$6.92920
100+
$6.01640
250+
$5.74600
500+
$5.23900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DG407DN-E3 Analog Switch solution by Vishay Siliconix, engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The DG407DN-E3 delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 2
- On-State Resistance (Max): 100Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 12V
- Voltage - Supply, Dual (V±): ±5V ~ 20V
- Switch Time (Ton, Toff) (Max): 200ns, 150ns
- -3db Bandwidth: -
- Charge Injection: 15pC
- Channel Capacitance (CS(off), CD(off)): 8pF, 65pF
- Current - Leakage (IS(off)) (Max): 500pA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
