DM74ALS27M
Fairchild Semiconductor
Fairchild Semiconductor
IC GATE NOR 3CH 3-INP 14SOIC
$0.14
Available to order
Reference Price (USD)
1+
$0.14000
500+
$0.1386
1000+
$0.1372
1500+
$0.1358
2000+
$0.1344
2500+
$0.133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DM74ALS27M by Fairchild Semiconductor sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The DM74ALS27M's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Obsolete
- Logic Type: NOR Gate
- Number of Circuits: 3
- Number of Inputs: 3
- Features: -
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): -
- Current - Output High, Low: 400µA, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 15ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
Related Products
Nexperia USA Inc.
74LVC1G27GW,125
onsemi
NL17SZ32DFT2
Texas Instruments
CD40106BPW
National Semiconductor
5438FM
onsemi
MM74HCT08MX
Motorola
MC9823P
Texas Instruments
CD74HC27E
Texas Instruments

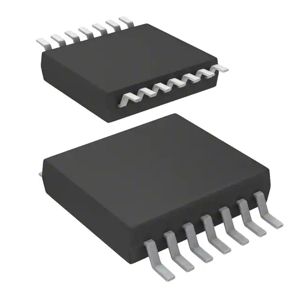

SN74LV20ADGVR
