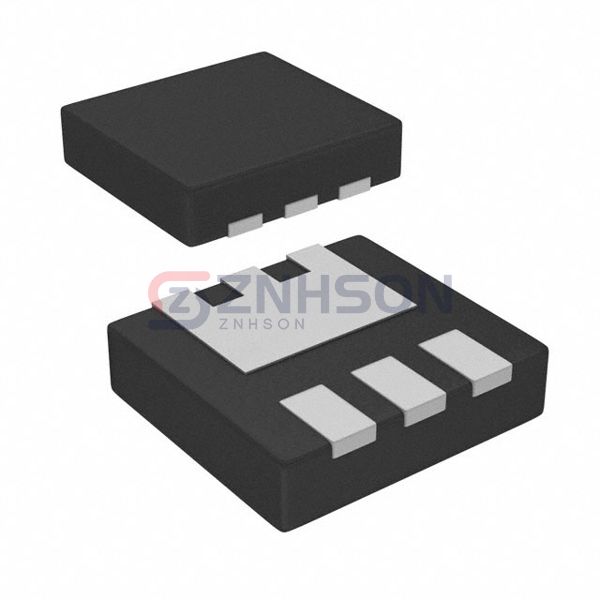

DMP3013SFK-13
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 30V 10.5A 6UDFN
$0.25
Available to order
Reference Price (USD)
1+
$0.24750
500+
$0.245025
1000+
$0.24255
1500+
$0.240075
2000+
$0.2376
2500+
$0.235125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DMP3013SFK-13 by Diodes Incorporated, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The DMP3013SFK-13 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Diodes Incorporated.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 14mOhm @ 9.5A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 33.7 nC @ 10 V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 1674 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta), 19.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2523-6
- Package / Case: 6-PowerUDFN
