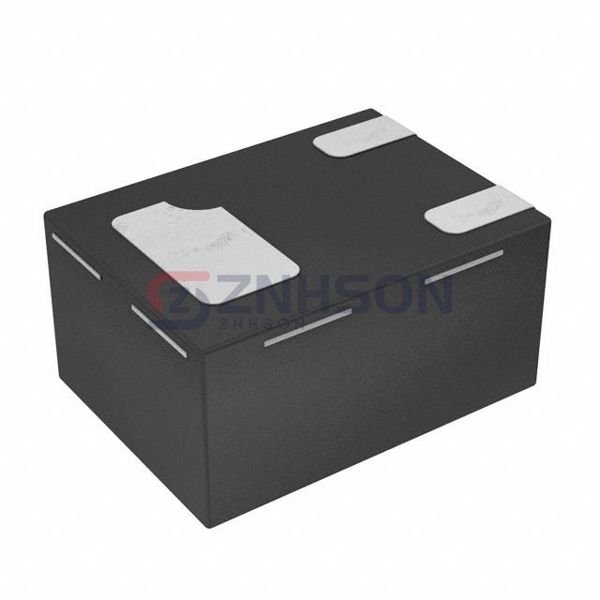

DMP32D5LFA-7B
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 30V 300MA 3DFN
$0.37
Available to order
Reference Price (USD)
10,000+
$0.04590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMP32D5LFA-7B by Diodes Incorporated is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose Diodes Incorporated for innovation you can depend on.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 300mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 1.5Ohm @ 200mA, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.7 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 40.9 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 360mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: X2-DFN0806-3
- Package / Case: 3-XFDFN
Related Products
Rohm Semiconductor
RAL035P01TCR
onsemi
FCP16N60N
Diodes Incorporated
DMN4040SK3-13
Infineon Technologies
IPD30N06S4L23ATMA2
Infineon Technologies
IAUS300N10S5N015TATMA1
Infineon Technologies
BSZ0704LSATMA1
Alpha & Omega Semiconductor Inc.
AO3421
Renesas Electronics America Inc
RJK0651DPB-00#J5
onsemi

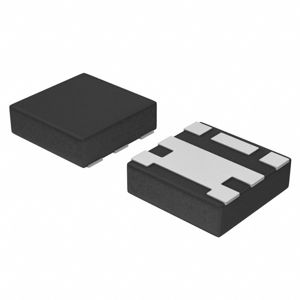

NTLUS3A90PZTBG
