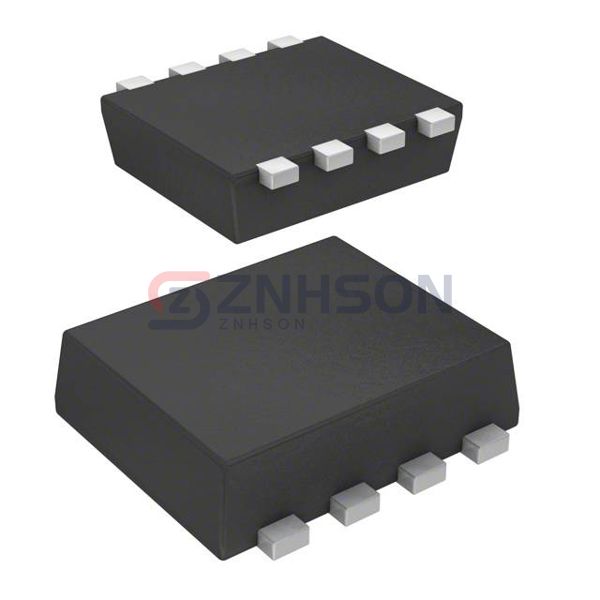

ECH8309-TL-H
onsemi
onsemi
MOSFET P-CH 12V 9.5A 8ECH
$0.81
Available to order
Reference Price (USD)
3,000+
$0.28645
6,000+
$0.26775
15,000+
$0.25840
30,000+
$0.25330
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ECH8309-TL-H from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the ECH8309-TL-H ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 16mOhm @ 4.5A, 4.5V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 1780 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-ECH
- Package / Case: 8-SMD, Flat Lead
