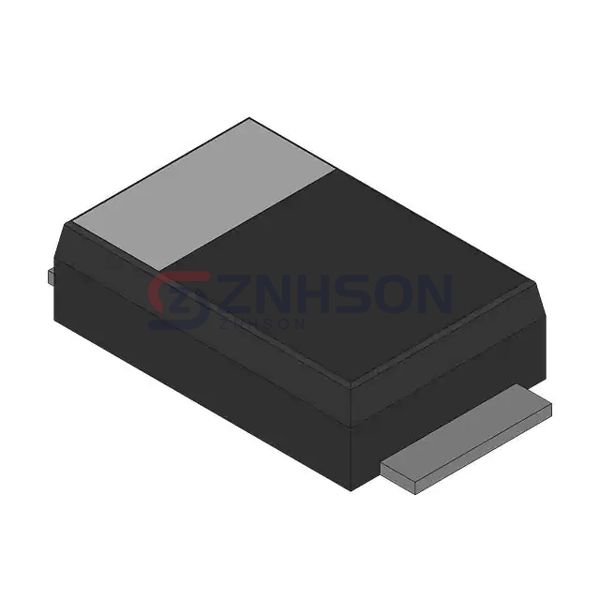

ES1DAF
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.27
Available to order
Reference Price (USD)
10,000+
$0.10718
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ES1DAF from Fairchild Semiconductor is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Fairchild Semiconductor's ES1DAF for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 950 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 34 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 200 V
- Capacitance @ Vr, F: 15pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AD, SMAF
- Supplier Device Package: DO-214AD (SMAF)
- Operating Temperature - Junction: -55°C ~ 150°C
