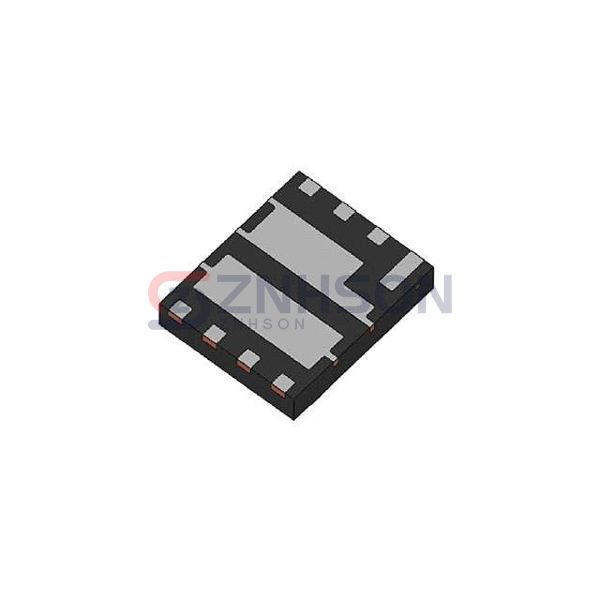

FDMD8560L
onsemi
onsemi
MOSFET 2N-CH 46V 22A POWER
$4.04
Available to order
Reference Price (USD)
3,000+
$1.76511
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FDMD8560L by onsemi is a high-performance component within the Discrete Semiconductor Products category. Designed as part of the Transistors - FETs, MOSFETs - Arrays series, it offers exceptional durability and efficiency for power-sensitive applications. From medical equipment to aerospace technology, the FDMD8560L provides reliable operation under stringent conditions. onsemi's innovative approach ensures this MOSFET array meets the needs of modern electronics.
Specifications
- Product Status: Obsolete
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 22A, 93A
- Rds On (Max) @ Id, Vgs: 3.2mOhm @ 22A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 128nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 11130pF @ 30V
- Power - Max: 2.2W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerWDFN
- Supplier Device Package: 8-Power 5x6
