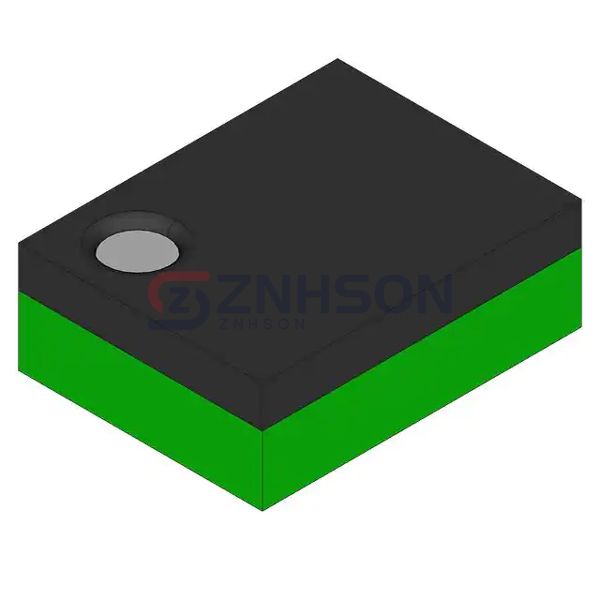

FDZ209N
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 60V 4A 12BGA
$0.80
Available to order
Reference Price (USD)
1+
$0.80000
500+
$0.792
1000+
$0.784
1500+
$0.776
2000+
$0.768
2500+
$0.76
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the FDZ209N from Fairchild Semiconductor, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the FDZ209N ensures reliable performance in demanding environments. Upgrade your circuit designs with Fairchild Semiconductor's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V
- Rds On (Max) @ Id, Vgs: 80mOhm @ 4A, 5V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9 nC @ 5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 657 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 12-BGA (2x2.5)
- Package / Case: 12-WFBGA
