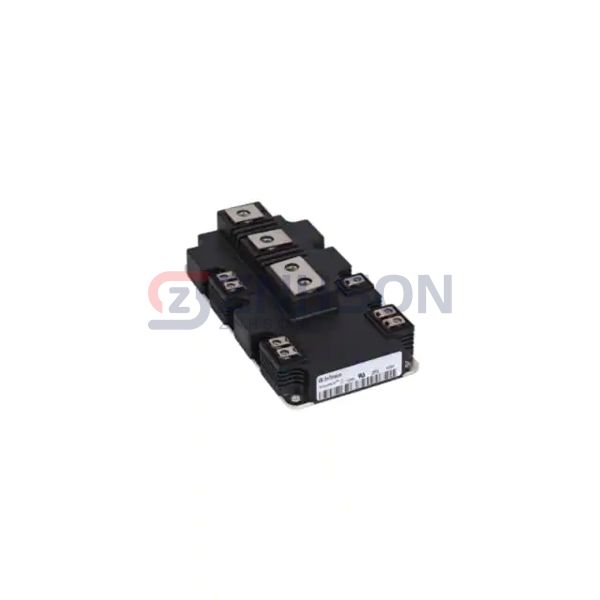

FF1200R17IP5BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1700V 1200A 20MW
$1,473.32
Available to order
Reference Price (USD)
3+
$834.80667
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FF1200R17IP5BPSA1 from Infineon Technologies exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the FF1200R17IP5BPSA1 in megawatt-level wind turbine converters. With Infineon Technologies's proven track record, the FF1200R17IP5BPSA1 represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1700 V
- Current - Collector (Ic) (Max): 1200 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 1200A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 68 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
