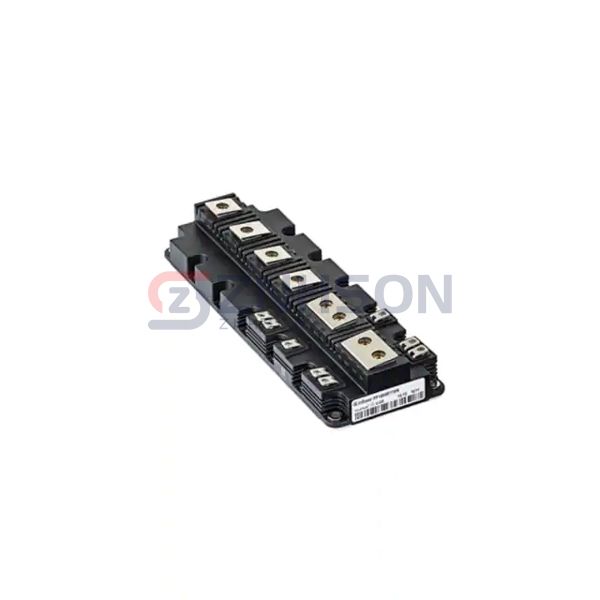

FF1800R12IE5BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 1800A 20MW
$1,325.45
Available to order
Reference Price (USD)
2+
$991.01500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of Infineon Technologies's FF1800R12IE5BPSA1, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The FF1800R12IE5BPSA1 performs exceptionally well in high-voltage DC transmission and pulsed power applications. With Infineon Technologies's FF1800R12IE5BPSA1, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: 2 Independent
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 1800 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 1800A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 98.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
