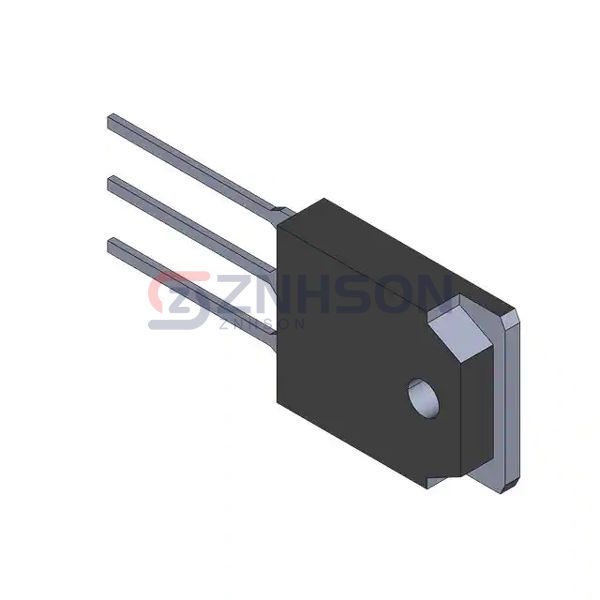

FGA20S120M
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 40A, 1200V, N-CHANNEL
$2.07
Available to order
Reference Price (USD)
1+
$2.07000
500+
$2.0493
1000+
$2.0286
1500+
$2.0079
2000+
$1.9872
2500+
$1.9665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGA20S120M by Fairchild Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Fairchild Semiconductor's reputation for quality, the FGA20S120M is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 20A
- Power - Max: 348 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 208 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3, SC-65-3
- Supplier Device Package: TO-3P
