IGP20N65F5XKSA1
Infineon Technologies
Infineon Technologies
IGBT TRENCH 650V 42A TO220-3
$1.48
Available to order
Reference Price (USD)
500+
$1.33696
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IGP20N65F5XKSA1 Single IGBT transistor by Infineon Technologies is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the IGP20N65F5XKSA1 provides consistent performance in varied conditions. Rely on Infineon Technologies's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 42 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 20A
- Power - Max: 125 W
- Switching Energy: 160µJ (on), 60µJ (off)
- Input Type: Standard
- Gate Charge: 48 nC
- Td (on/off) @ 25°C: 20ns/165ns
- Test Condition: 400V, 10A, 32Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: PG-TO220-3
Related Products
STMicroelectronics
STGW15H120F2
onsemi
ISL9V5045S3ST-F085
IXYS
IXA45IF1200HB
Infineon Technologies
IGB50N65S5ATMA1
onsemi
FGH40T120SMD-F155
Infineon Technologies

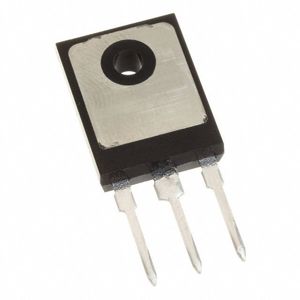

IKW40N65F5FKSA1
Micro Commercial Co

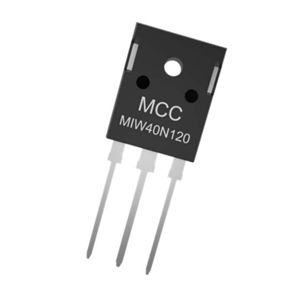

MIW40N120-BP
STMicroelectronics

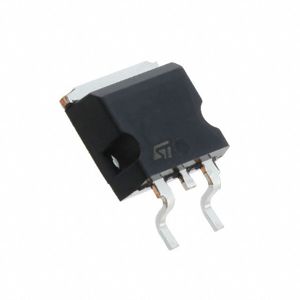

STGB20N45LZAG
