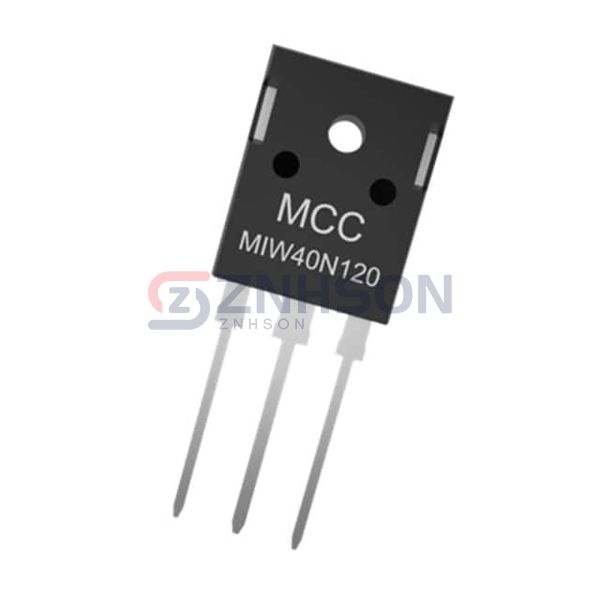

MIW40N120-BP
Micro Commercial Co
Micro Commercial Co
IGBT 1200V 40A TO-247
$4.16
Available to order
Reference Price (USD)
1+
$4.15500
500+
$4.11345
1000+
$4.0719
1500+
$4.03035
2000+
$3.9888
2500+
$3.94725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the MIW40N120-BP Single IGBT transistor from Micro Commercial Co. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the MIW40N120-BP delivers consistent and reliable operation. Trust Micro Commercial Co's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 277 W
- Switching Energy: 3.3mJ (on), 1.4mJ (off)
- Input Type: Standard
- Gate Charge: 239 nC
- Td (on/off) @ 25°C: 62ns/265ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 80 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
