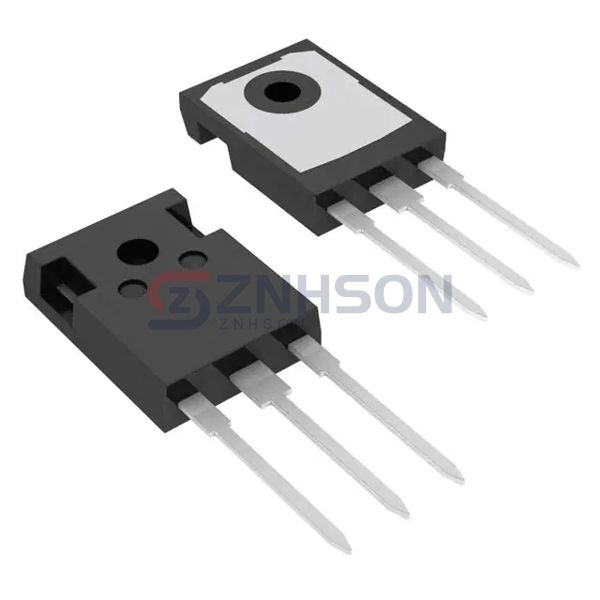

FGH40N60SMD-F085
onsemi
onsemi
IGBT 600V 80A 349W TO-247-3
$6.63
Available to order
Reference Price (USD)
1+
$5.67000
10+
$5.10400
450+
$4.00747
900+
$3.61413
1,350+
$3.07585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH40N60SMD-F085 by onsemi is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With onsemi's reputation for quality, the FGH40N60SMD-F085 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 40A
- Power - Max: 349 W
- Switching Energy: 920µJ (on), 300µJ (off)
- Input Type: Standard
- Gate Charge: 180 nC
- Td (on/off) @ 25°C: 18ns/110ns
- Test Condition: 400V, 40A, 6Ohm, 15V
- Reverse Recovery Time (trr): 47 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
