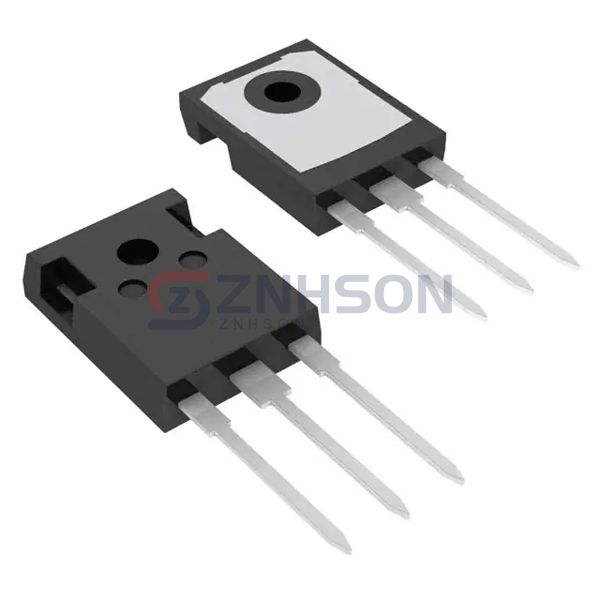

FGH60N60SMD-F085
onsemi
onsemi
IGBT 600V 120A 600W TO247
$7.08
Available to order
Reference Price (USD)
1+
$7.00000
10+
$6.34600
450+
$5.06927
900+
$4.64343
1,350+
$4.07568
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH60N60SMD-F085 from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose FGH60N60SMD-F085 for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 60A
- Power - Max: 600 W
- Switching Energy: 1.59mJ (on), 390µJ (off)
- Input Type: Standard
- Gate Charge: 280 nC
- Td (on/off) @ 25°C: 22ns/116ns
- Test Condition: 400V, 60A, 3Ohm, 15V
- Reverse Recovery Time (trr): 42 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
