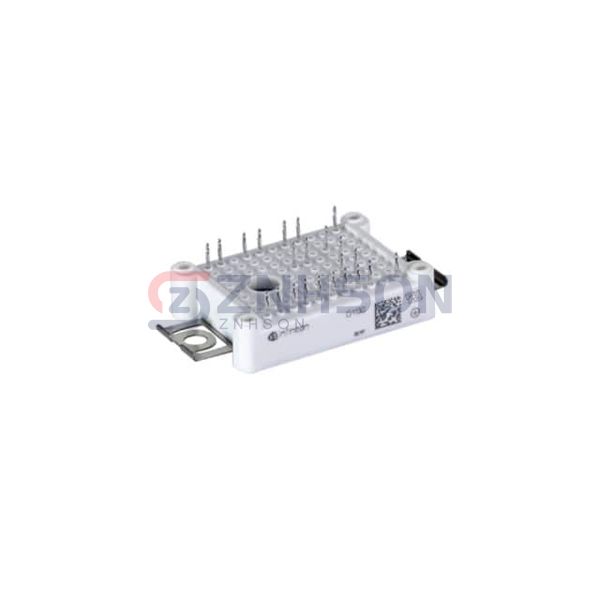

FP10R12W1T7B3BOMA1
Infineon Technologies
Infineon Technologies
IGBT MODULE LOW POWER EASY
$36.74
Available to order
Reference Price (USD)
1+
$36.74000
500+
$36.3726
1000+
$36.0052
1500+
$35.6378
2000+
$35.2704
2500+
$34.903
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FP10R12W1T7B3BOMA1 by Infineon Technologies redefines performance in the IGBT modules segment of Discrete Semiconductor Products. Featuring sixth-generation field-stop technology, this power transistor delivers optimal switching characteristics and short-circuit withstand capability. Key attributes include: 175 C maximum junction temperature, low EMI generation, and integrated current sensing. Industrial applications span from elevator drives and CNC machinery to large-scale HVAC systems. A practical implementation would be using the FP10R12W1T7B3BOMA1 in high-efficiency servo controllers for manufacturing automation. Infineon Technologies combines innovation with quality in every FP10R12W1T7B3BOMA1 module.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 10 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 1.6V @ 15V, 10A (Typ)
- Current - Collector Cutoff (Max): 4.5 µA
- Input Capacitance (Cies) @ Vce: 1.89 nF @ 25 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: AG-EASY1B-2
Related Products
Microchip Technology
APT100GN120J
Microchip Technology
APTGT300DA120G
Infineon Technologies
IFF450B12ME4PB11BPSA1
Microchip Technology
APTGLQ100A120T3AG
IXYS
IXYN110N120C4
Infineon Technologies
F450R07W1H3B11ABOMA1
Infineon Technologies
FF300R12KT3EHOSA1
Infineon Technologies
FZ2000R33HE4BOSA1
Infineon Technologies

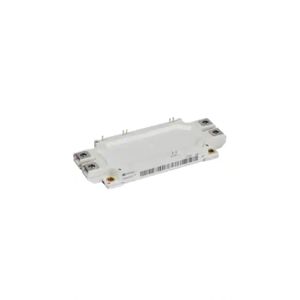

FF150R17ME3GBOSA1
