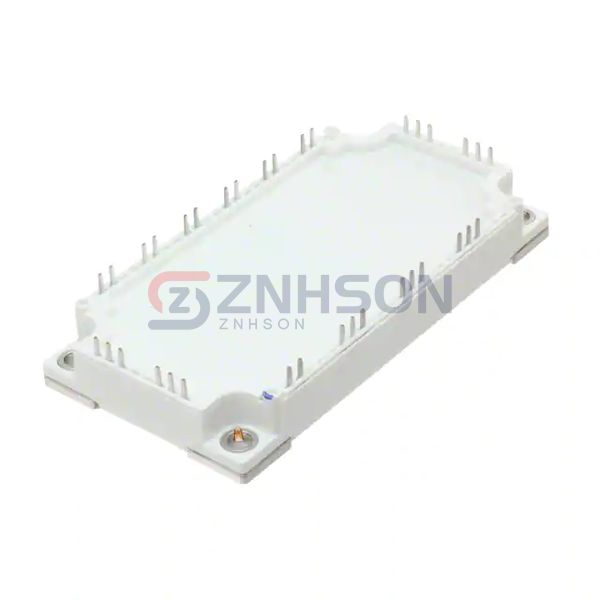

FS150R12KE3GBOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 200A 695W
$349.41
Available to order
Reference Price (USD)
4+
$308.18500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the FS150R12KE3GBOSA1 IGBT module by Infineon Technologies sets new standards in the Discrete Semiconductor Products market. This power transistor module combines high current density with excellent thermal cycling capability. Its standout features include positive temperature coefficient for easy paralleling and built-in temperature monitoring. The FS150R12KE3GBOSA1 finds perfect application in electric vehicle charging stations, wind turbine converters, and robotic automation systems. For instance, this module excels in high-power SMPS designs requiring >100kHz switching frequencies. Infineon Technologies continues to lead the IGBT module revolution with innovations like the FS150R12KE3GBOSA1.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Power - Max: 695 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 150A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 10.5 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
