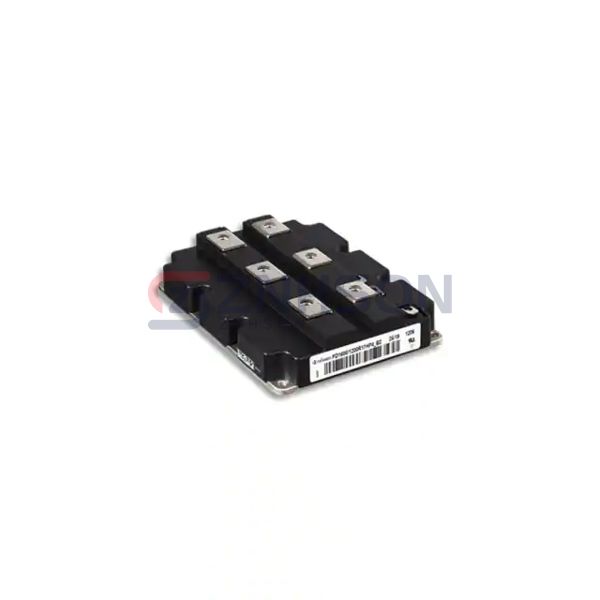

FZ1200R33KF2CNOSA1
Infineon Technologies
Infineon Technologies
IGBT MODULE 3300V 2000A
$2,588.04
Available to order
Reference Price (USD)
1+
$1,936.24000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FZ1200R33KF2CNOSA1 from Infineon Technologies exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the FZ1200R33KF2CNOSA1 in megawatt-level wind turbine converters. With Infineon Technologies's proven track record, the FZ1200R33KF2CNOSA1 represents the future of power semiconductor modules.
Specifications
- Product Status: Last Time Buy
- IGBT Type: -
- Configuration: Full Bridge
- Voltage - Collector Emitter Breakdown (Max): 3300 V
- Current - Collector (Ic) (Max): 2000 A
- Power - Max: 14500 W
- Vce(on) (Max) @ Vge, Ic: 4.25V @ 15V, 1200A
- Current - Collector Cutoff (Max): 12 mA
- Input Capacitance (Cies) @ Vce: 150 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
