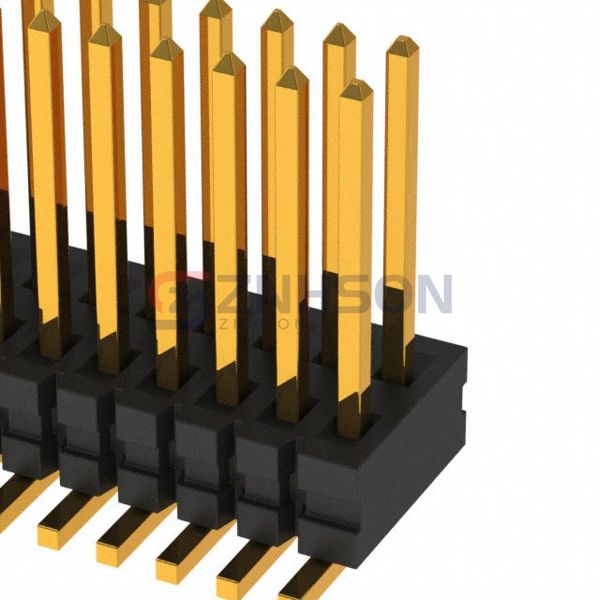

FTE-119-02-G-DV
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 38POS 0.8MM
$10.29
Available to order
Reference Price (USD)
1+
$6.14000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the FTE-119-02-G-DV rectangular connector header from Samtec Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the FTE-119-02-G-DV is perfect for automotive, industrial, and consumer electronics. Samtec Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.047" (1.20mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.175" (4.45mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.055" (1.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.7A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
917353-1
TE Connectivity AMP Connectors
1-770968-0
Amphenol ICC (FCI)
77315-101-20LF
Amphenol ICC (FCI)
98401-101-50LF
Mill-Max Manufacturing Corp.
852-40-008-20-001000
TE Connectivity AMP Connectors
9-146277-0-16
Molex
0348250240
Amphenol ICC (FCI)

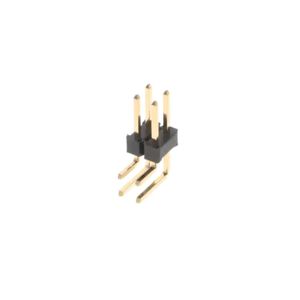

10129382-904001BLF
Amphenol ICC (FCI)

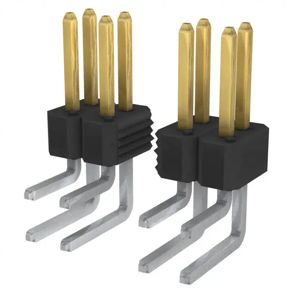

77317-104-50LF
