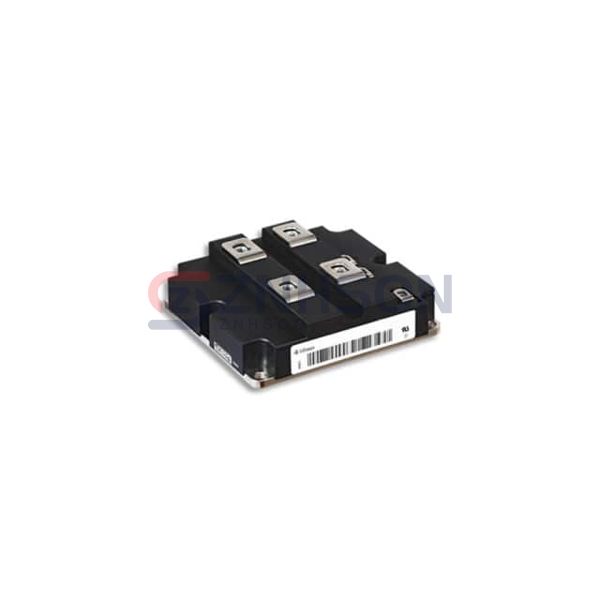

FZ1200R17HE4PHPSA1
Infineon Technologies
Infineon Technologies
IGBT MODULE 1700V 1200A
$1,012.70
Available to order
Reference Price (USD)
3+
$641.35333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's FZ1200R17HE4PHPSA1 stands out in the Transistors - IGBTs - Modules category with its revolutionary RC-IGBT design. This discrete semiconductor product merges the advantages of IGBTs and diodes in a single chip for compact power solutions. The module boasts exceptional features like: 650V-1700V voltage range, solderless press-fit contacts, and humidity-resistant coating. It's particularly suited for photovoltaic inverters, uninterruptible power supplies, and medical imaging equipment. For example, the FZ1200R17HE4PHPSA1 enables higher power density in MRI gradient amplifiers. Choose Infineon Technologies for IGBT modules that push performance boundaries.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single Switch
- Voltage - Collector Emitter Breakdown (Max): 1700 V
- Current - Collector (Ic) (Max): 1200 A
- Power - Max: -
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 1200A
- Current - Collector Cutoff (Max): 5 mA
- Input Capacitance (Cies) @ Vce: 97 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
