IKB20N60TATMA1
Infineon Technologies
Infineon Technologies
IGBT 600V 40A 166W TO263-3
$3.40
Available to order
Reference Price (USD)
1,000+
$1.65493
2,000+
$1.57612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IKB20N60TATMA1 from Infineon Technologies is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose IKB20N60TATMA1 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.05V @ 15V, 20A
- Power - Max: 166 W
- Switching Energy: 770µJ
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 18ns/199ns
- Test Condition: 400V, 20A, 12Ohm, 15V
- Reverse Recovery Time (trr): 41 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: PG-TO263-3-2
Related Products
Fairchild Semiconductor
FGA70N30TDTU
onsemi

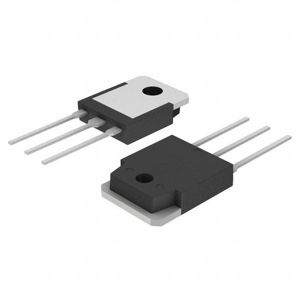

FGA30S120P
IXYS
IXXH30N60B3
Infineon Technologies

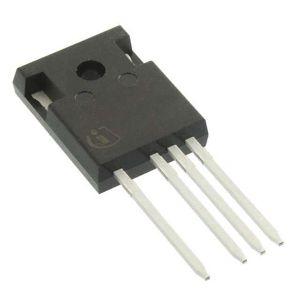

IKZ75N65EL5XKSA1
Fairchild Semiconductor
ISL9V3036S3ST
Microchip Technology
APT50GN120B2G
IXYS
IXGH40N120B2D1
Harris Corporation
HGTD3N60C3
Renesas Electronics America Inc

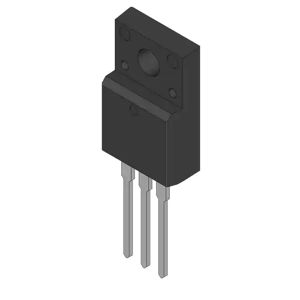

RJP3045DPP-B1#T2F
