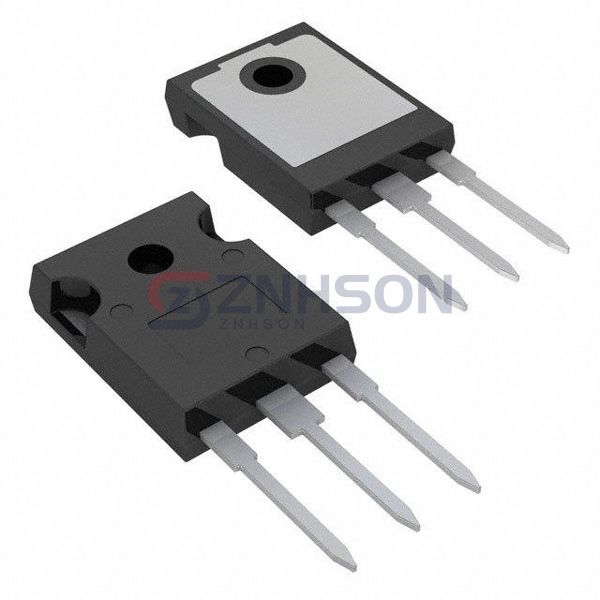

IRGP4650D-EPBF
Infineon Technologies
Infineon Technologies
IGBT 600V 76A 268W TO247AD
$4.44
Available to order
Reference Price (USD)
1+
$8.33000
10+
$7.52400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRGP4650D-EPBF Single IGBT transistor by Infineon Technologies, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IRGP4650D-EPBF ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IRGP4650D-EPBF for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 76 A
- Current - Collector Pulsed (Icm): 105 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 35A
- Power - Max: 268 W
- Switching Energy: 390µJ (on), 632µJ (off)
- Input Type: Standard
- Gate Charge: 104 nC
- Td (on/off) @ 25°C: 46ns/105ns
- Test Condition: 400V, 35A, 10Ohm, 15V
- Reverse Recovery Time (trr): 120 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
