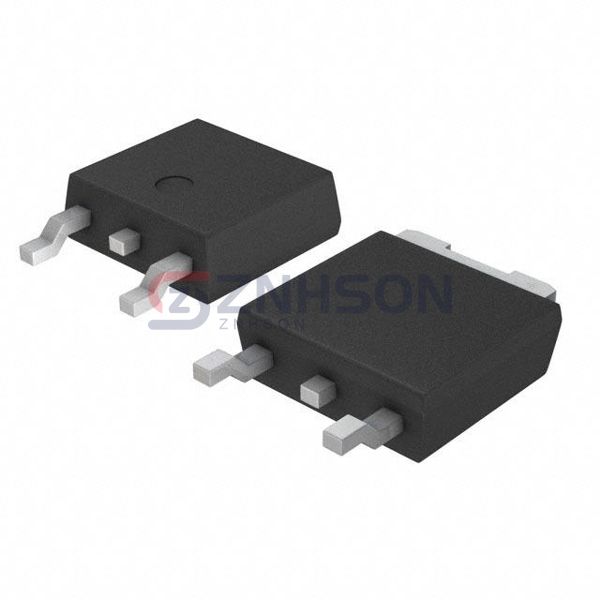

IRLR120PBF
Vishay Siliconix
Vishay Siliconix
MOSFET N-CH 100V 7.7A DPAK
$1.73
Available to order
Reference Price (USD)
1+
$1.49000
75+
$1.19107
150+
$1.04213
525+
$0.80821
1,050+
$0.63806
2,550+
$0.59552
5,025+
$0.56574
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IRLR120PBF by Vishay Siliconix, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IRLR120PBF is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 7.7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 5V
- Rds On (Max) @ Id, Vgs: 270mOhm @ 4.6A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 490 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 42W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-Pak
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
