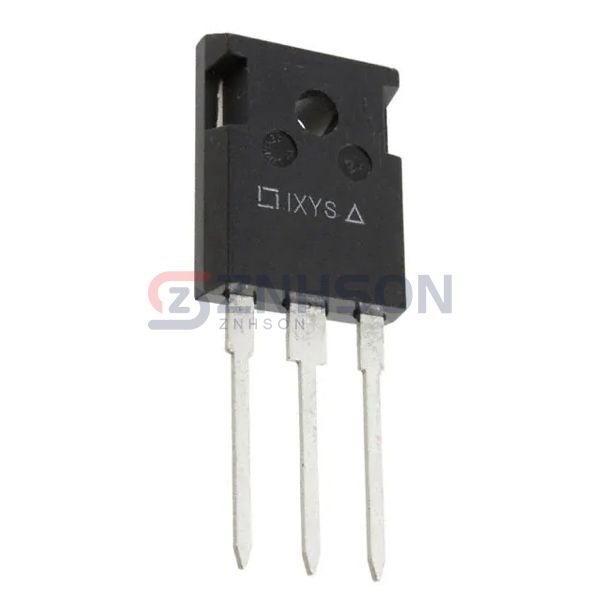

IXDH30N120D1
IXYS
IXYS
IGBT 1200V 60A 300W TO247AD
$11.48
Available to order
Reference Price (USD)
30+
$10.65500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXDH30N120D1 by IXYS is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the IXDH30N120D1 delivers robust performance. IXYS's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate IXDH30N120D1 into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 76 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 30A
- Power - Max: 300 W
- Switching Energy: 4.6mJ (on), 3.4mJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: -
- Test Condition: 600V, 30A, 47Ohm, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
