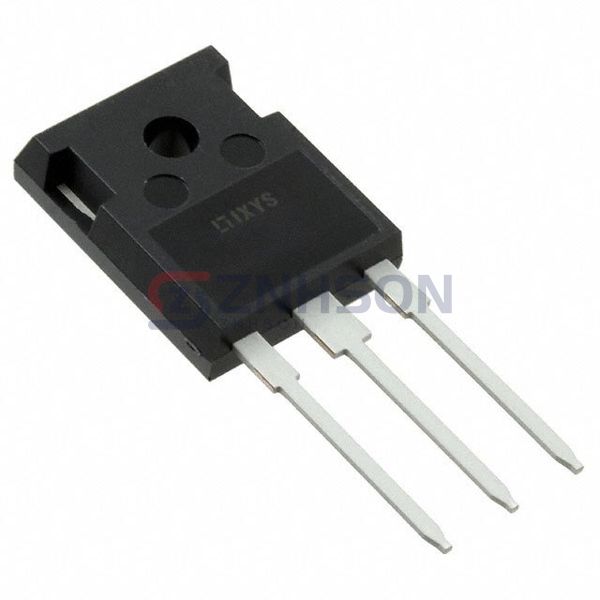

IXFH120N20P
IXYS
IXYS
MOSFET N-CH 200V 120A TO247AD
$12.31
Available to order
Reference Price (USD)
30+
$7.85167
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the IXFH120N20P by IXYS, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the IXFH120N20P is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 5V @ 4mA
- Gate Charge (Qg) (Max) @ Vgs: 152 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 714W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247AD (IXFH)
- Package / Case: TO-247-3
