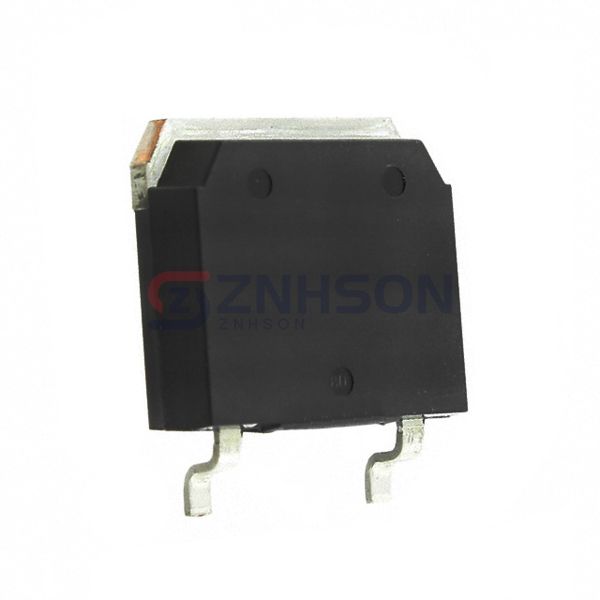

IXGT72N60A3
IXYS
IXYS
IGBT 600V 75A 540W TO268
$11.14
Available to order
Reference Price (USD)
30+
$8.09333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGT72N60A3 from IXYS is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose IXGT72N60A3 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 75 A
- Current - Collector Pulsed (Icm): 400 A
- Vce(on) (Max) @ Vge, Ic: 1.35V @ 15V, 60A
- Power - Max: 540 W
- Switching Energy: 1.38mJ (on), 3.5mJ (off)
- Input Type: Standard
- Gate Charge: 230 nC
- Td (on/off) @ 25°C: 31ns/320ns
- Test Condition: 480V, 50A, 3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268AA
