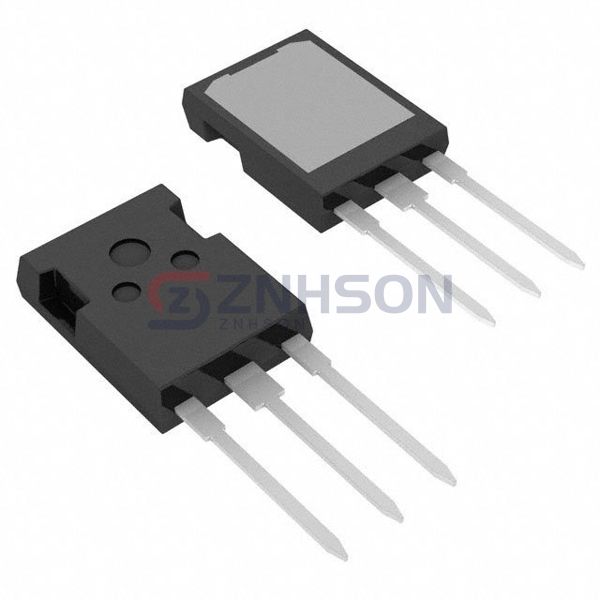

IXGX120N120A3
IXYS
IXYS
IGBT 1200V 240A 830W PLUS247
$37.01
Available to order
Reference Price (USD)
30+
$24.25800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGX120N120A3 Single IGBT transistor by IXYS is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the IXGX120N120A3 provides consistent performance in varied conditions. Rely on IXYS's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 240 A
- Current - Collector Pulsed (Icm): 600 A
- Vce(on) (Max) @ Vge, Ic: 2.2V @ 15V, 100A
- Power - Max: 830 W
- Switching Energy: 10mJ (on), 33mJ (off)
- Input Type: Standard
- Gate Charge: 420 nC
- Td (on/off) @ 25°C: 40ns/490ns
- Test Condition: 960V, 100A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
