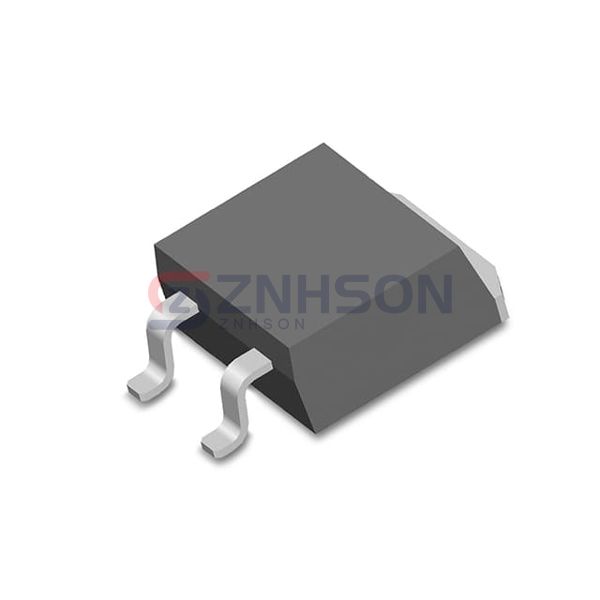

IXYA20N120A4HV
IXYS
IXYS
DISC IGBT XPT-GENX4 TO-263D2
$10.61
Available to order
Reference Price (USD)
1+
$10.61000
500+
$10.5039
1000+
$10.3978
1500+
$10.2917
2000+
$10.1856
2500+
$10.0795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYA20N120A4HV by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXYA20N120A4HV is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 135 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 20A
- Power - Max: 375 W
- Switching Energy: 3.6mJ (on), 2.75mJ (off)
- Input Type: Standard
- Gate Charge: 46 nC
- Td (on/off) @ 25°C: 12ns/275ns
- Test Condition: 800mV, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 54 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263HV
