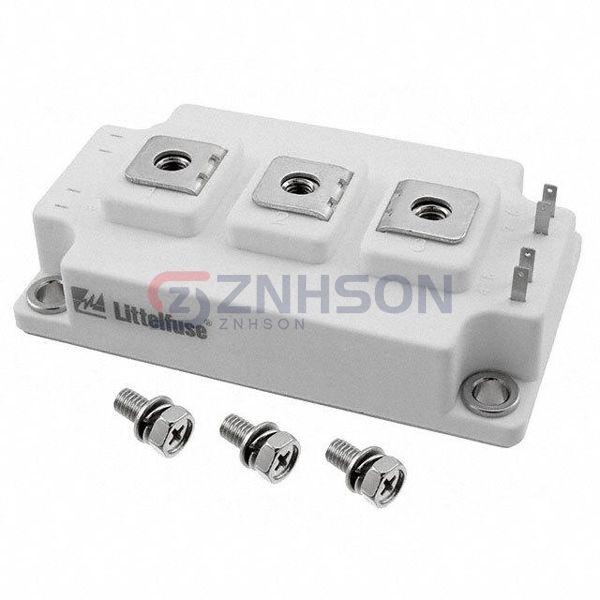

MG12300D-BN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MODULE 1200V 480A 1450W D3
$198.69
Available to order
Reference Price (USD)
1+
$189.60000
10+
$181.20000
25+
$175.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MG12300D-BN2MM from Littelfuse Inc. is a high-performance IGBT module designed for power electronics applications. As part of the Discrete Semiconductor Products category, this transistor module offers exceptional efficiency and reliability. Key features include low saturation voltage, high-speed switching, and robust thermal performance. These IGBT modules are widely used in industrial motor drives, renewable energy systems, and electric vehicle powertrains. For example, the MG12300D-BN2MM is ideal for solar inverters, welding equipment, and UPS systems where high power handling is required. Choose Littelfuse Inc.'s advanced IGBT technology for your most demanding power conversion challenges.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 480 A
- Power - Max: 1450 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 300A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 21 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
