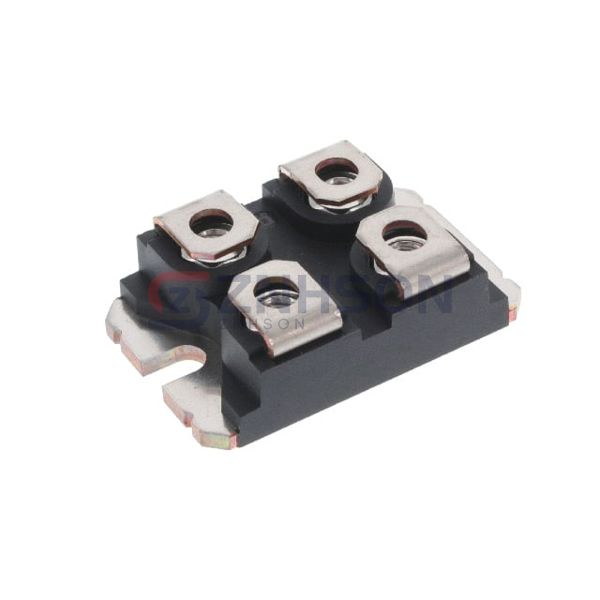

MSC025SMA120J
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 77A SOT227
$52.14
Available to order
Reference Price (USD)
1+
$52.14000
500+
$51.6186
1000+
$51.0972
1500+
$50.5758
2000+
$50.0544
2500+
$49.533
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC025SMA120J from Microchip Technology sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Microchip Technology's MSC025SMA120J for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 77A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 232 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 3020 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 278W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
