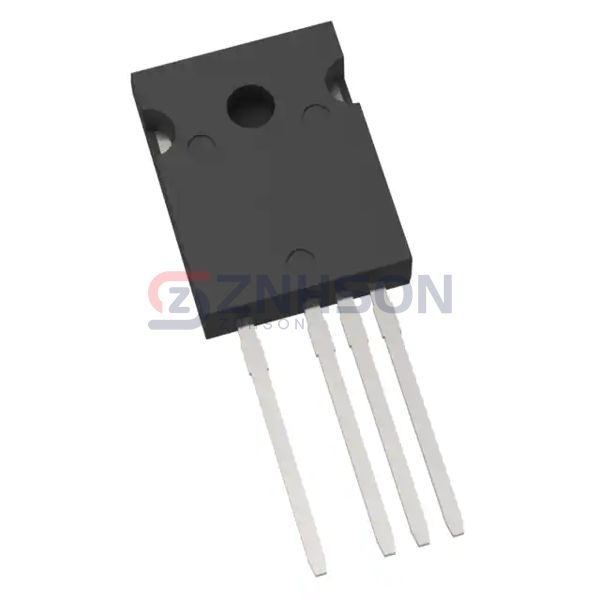

MSC035SMA070B4
Microchip Technology
Microchip Technology
TRANS SJT N-CH 700V 77A TO247-4
$14.15
Available to order
Reference Price (USD)
1+
$14.15000
500+
$14.0085
1000+
$13.867
1500+
$13.7255
2000+
$13.584
2500+
$13.4425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC035SMA070B4 from Microchip Technology redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the MSC035SMA070B4 offers the precision and reliability you need. Trust Microchip Technology to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 77A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 44mOhm @ 30A, 20V
- Vgs(th) (Max) @ Id: 2.7V @ 2mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: 99 nC @ 20 V
- Vgs (Max): +23V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 2010 pF @ 700 V
- FET Feature: -
- Power Dissipation (Max): 283W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4
- Package / Case: TO-247-4
